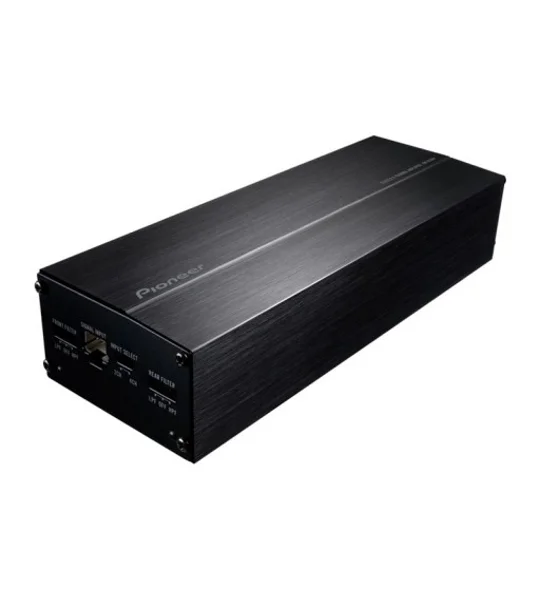

PIONEER GM-D1004 4 Channel Amplifier 400Watts

Class FD Bridgeable 4-Channel Amplifier

COMPACT DESIGN

Whether you call it “compact” or “micro” the GM-D1004 will wear the name proudly. With the size equivalent to slightly smaller than a standard red brick, you’ll have no problem finding a place to mount it or conceal it behind our short chassis Digital Media Receivers stereos, glove box or even in the center console.

SMALL BUT POWERFUL
It may be small but don’t let the size fool you. The GM-D1004 is capable of delivering up to 400 Watts of maximum output and is more than comfortable providing 45 Watts of power per channel, that’s more than enough to improve the performance of your factory or aftermarket speakers.

VARITY OF INSTALLS
Today more and more music lovers are taking their music off-road and finding ways to enjoy their music recreationally. With the GM-D1004 you can add great sound to your motorcycle, ATV, or boat where a conventional size amplifier may not fit.

FLEXIBLE CONNECTIVITY
For DIYers, the GM-D1004 amplifier is not only small and powerful but it’s easy to install. Simply connect power and ground at the radio and get more installation flexibility using hi-level or low-level inputs with a signal sensing remote turn on so you can use it in combination with a factory or aftermarket headunit.

GENERAL

• 4 Channels
• Amplifer Class Class FD
• Maximum Power Output 400W
• Maximum Power Output at 2 Ohms 100W x 4
• Maximum Power Output at 4 Ohms 100W x 4
• Maximum Power Output - Bridged at 4 Ohms 200W x 2
• Nominal Power (RMS) Output at 2 Ohms 45W x 4
• Nominal Power (RMS) Output at 4 Ohms 45W x 4
• Nominal Power (RMS) Output - Bridged at 4 Ohms 90W x 2
• Frequency Response 10 Hz to 40 kHz
• Total Harmonic Distortion (THD) < 0.05% (1 kHz)
• Signal-to-Noise (SN) Ratio 75 dB
• Fuse Rating 15 Amps

SPECIFICATIONS

• RCA Inputs 4-Ch.
• Speaker Level Inputs
• Crossover Type LPF/HPF
• Low-Pass Crossover Frequency 80 Hz (LPF/OFF/HPF)
• Low Pass Slope (dB/octave) -12 dB/octave
• High-Pass Crossover Frequency 80 Hz (LPF/OFF/HPF)
• High-Pass Slope (dB/octave) -12 dB/octave
• Automatic Signal Sensing and Turn-On
• Terminal Type Removable
• Load Impedance Allowance (Ohm) 1 to 8
• Bridgeable
• MOSFET Output Selection
• Protection Control System
• Dimensions (WxHxD)(inches) 7-1/8" x 1-1/2" x 2-1/2"
• Warranty 1 Year
