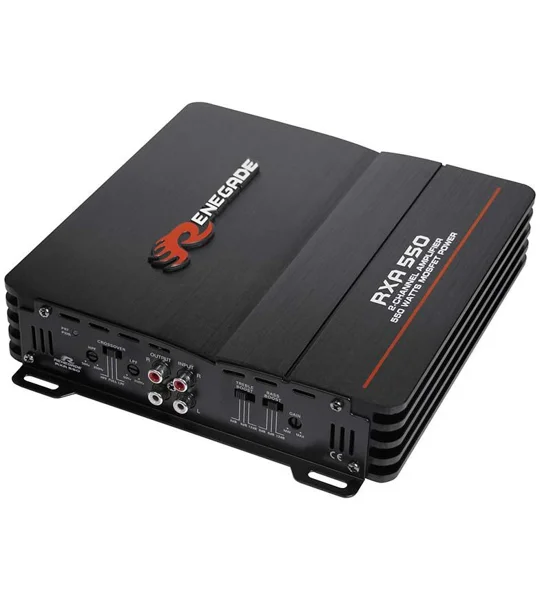

Renegade RXA 550 2-Channel Power Amplifier Bridgeable

Renegade RXA550 2 Channel Amplifier - 550 Watt Max
Features:

• Renegade RXA550 2 Channel Amplifier with 550 Watt Maximum output
• 2 or 1 channel operation
• Mono bridgeable
• Full MOSFET power supply to ensure clean output and maximum power output
• 2 Ohm stable in 2 channel mode
• Frequency Response of 5 Hz - 40KHz, ± 3dB
• Total harmonic distortion: less than 0.5%
• Signal to noise ratio: > 90dB
• Input impedance: 10 kOhm
• Low Pass filter: Variable 50 - 200 Hz 12dB/octave
• High Pass filter: Variable 50 - 2 KHz 12dB/octave
• Variable Bass Boost: 40Hz - 0dB/+6dB/+12dB
• Variable Treble Boost: 0dB/+6dB/+12dB
• 2 - Channel Low level RCA inputs
• 2 - Channel High level speaker inputs
• Loop through RCA outputs
• Fuse rating: 1 x 30 amp
• Instruction Manual - Renegade RXA550 2 Channel Amplifier - 550 Watt Max Manual

RMS Power Output:

• 75 watts x 2 Channel (4 ohms)
• 135 watts x 2 Channel (2 ohms)
• 275 watts x 1 Channel

Max Power Output:

• 150 watts x 2 Channel (4 ohms)
• 275 watts x 2 Channel (2 ohms)

Inputs and Outputs:

• High Level Input @ 250mV - 10V
• Low Level Input @ 125mV - 7V

Dimensions:

• 1-7/8” H x 8-5/8” W x 9-3/4” L

Warranty Duration:

• Basic Warranty: 1 year
